Atlas crane:
Atlas 332.3E/A4 (Crane group H1/B3)
Lifting capacity: 320 kNm
Swivel range: 410 degrees
Folded height: 2450 mm
Weight: 3250 kg
Max. Hydr. arm reach: 12.50 m
Bofram Flatbed with Crane

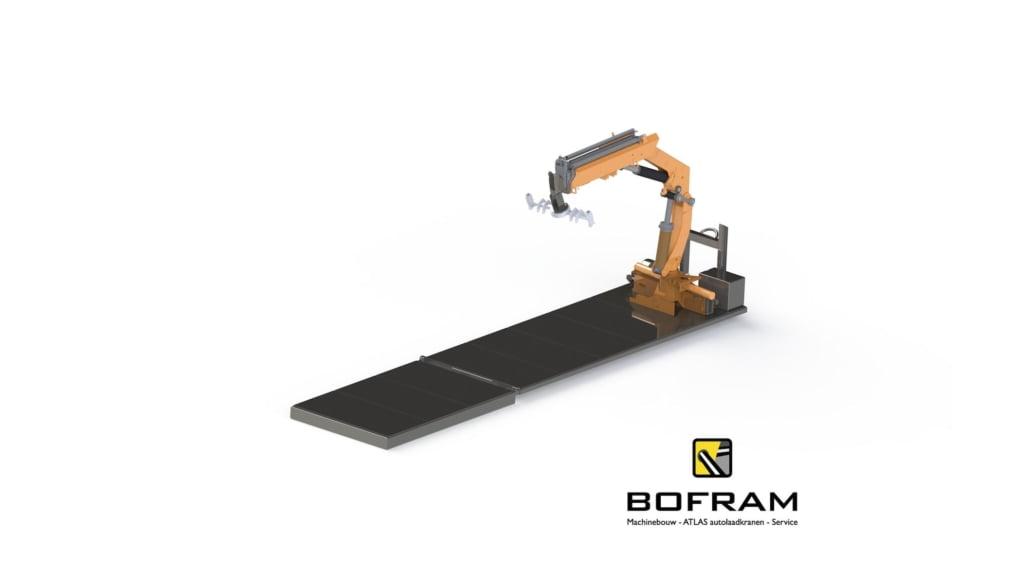

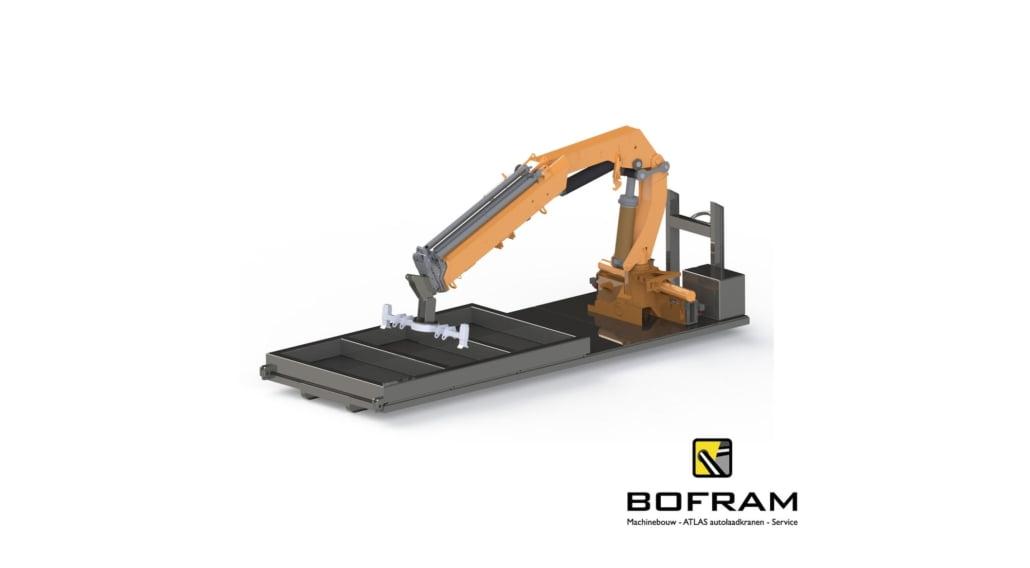

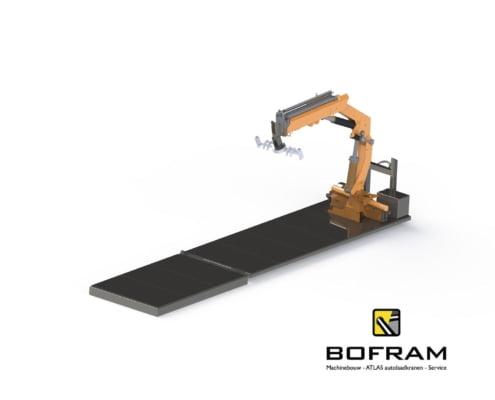

This on site flatbed with crane allows the crane with pipe handler to operate without the presence of a truck during an horizontal directional drilling.
The hook lift carriage is 7.2 meters long and with the removable 4 meter floor section, a 9.5 meter working platform for the crane can be created. The hydraulic pump of this Atlas crane is electrically driven with a 22 kw motor (1500 rpm). With a remote control, it is possible to steer the Atlas 332.2E A4 with hoist hook or with torque boom piece. Optionally with hydraulic manipulator or a Bofram pipe handler.
| Frame | Steel hook arm |
| Dimensions | 7200 (L) + 4000(L) |
| Hydraulic system | Load-sensing pump Hydraulic tank 200 L Electric drive 22 kw – 1500 rpm |
| Manipulator | Hydraulic manipulator or drill rod clamp |
| Documentation | CE documentation, manual, parts list and diagrams |
| Lightning | 2x extendable worklight on sledge |
| Controls | Stainless steel wall cabinet with display, emergency stop and control buttons; Emergency stop Main switch, lighting on/off Truck mounted crane on/off Hydraulic power pack on/off Truck mounted crane on/off Hour meter for auto loading crane Phase sequence monitoring Under control box connection for cables, 63 A plug |
