Specifications aluminum HDD mixer:
- Venturi model Bofram Techniek
- PE piping with various butterfly valves and pressure gauge
- Equipped with hopper table with cutting blade, lid above the hopper, and valve
- Filling pipe, mixing pipe, and suction pipe connection
- Filling pipe with water filter and Storz coupling
- Stairs to get to the tank easily
Extra options:
- Divide the tank into 2 compartments, clean water part + mix tank part, suction from both tanks is possible
- Hose reel with 2” 40 meters of hose for the pre-pressure line to the drilling machine, including pneumatic drive
- Storage option under workbench or drill rod rack under workbench
- Work lights
- High pressure cleaner 230V with spray hose 15mtr and gun

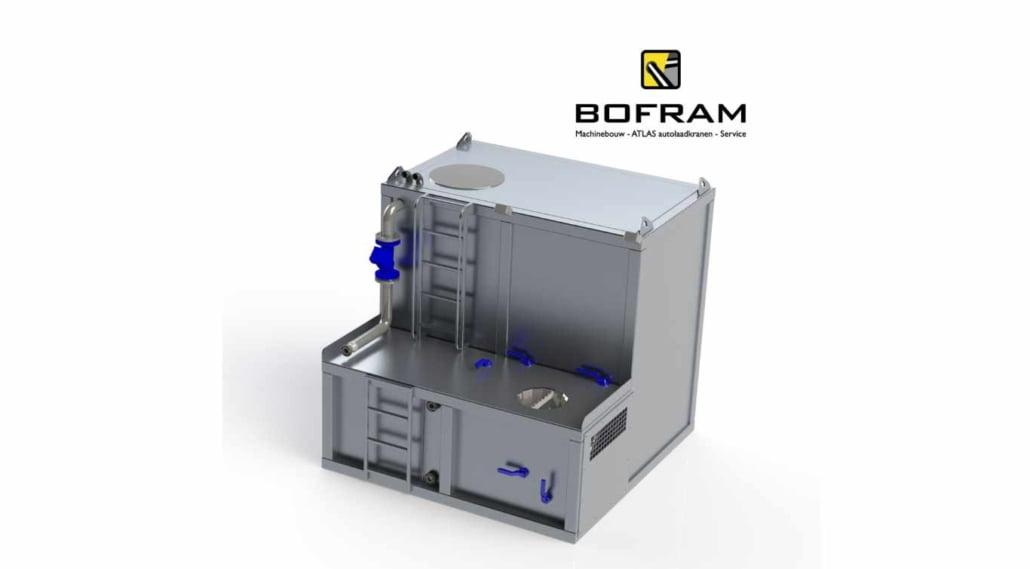

Aluminum HDD mud mixer BFM 600 D
By using aluminum, it is possible to manufacture a lightweight, durable, and strong hdd mud mixer. It will not rust or oxidize without further treatment.
| Frame | Aluminum |
| Dimensions | 2310 (L (mm)) X 2200 (W (mm)) x 2300 (H (mm)) |
| Tanks | • 1x Aluminum mix tank (/storage tank) 6m3, equipped with manhole and drain points (for bentonite testing and tank cleaning). The tank is equipped with a level measurement indicator. • Aluminum tanks are shaped in such a way that minimal dirt build-up is possible |
| Power drive | Diesel engine Stage V 18,5 Kw Kubota (equipped with noise reduction material to achieve a low noise level (65 DB) |
| Mix pump | Sandmaster mix pump with ceramic seal |
| Mix capacity | 500 liters per minute |
| Control | • Stainless steel wall cabinet, equipped with display, emergency stop and control buttons. Buttons have the following functions; Emergency stop, diesel engine start/stop, lighting on/off • Display for reading current status, possible malfunctions, running hours and maintenance intervals. |
